Crackit Bracket
Snap Apart Wire Brackets

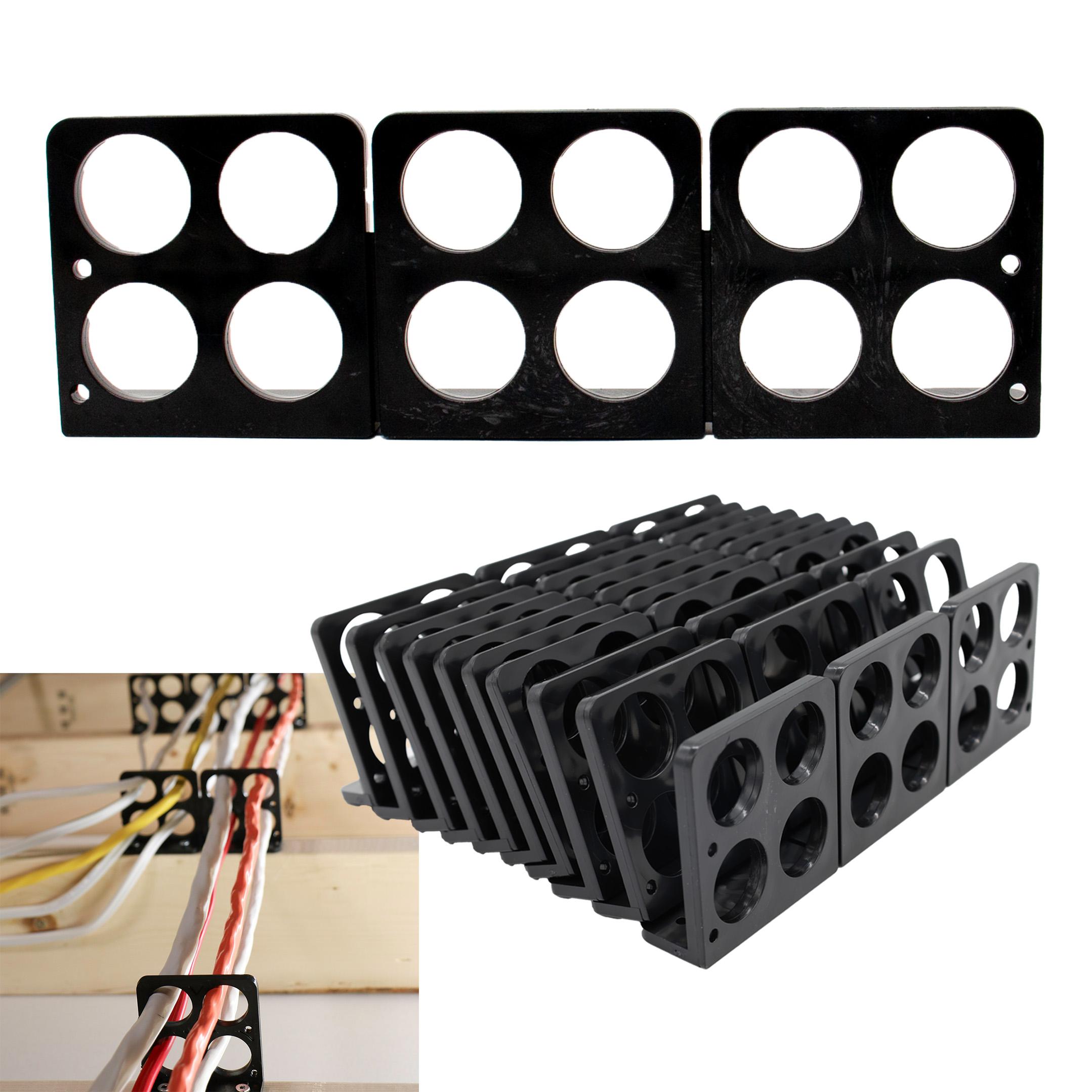

The Crackit Bracket is built to simplify the process of rough-in and keep cable runs clean, organized, and easy to manage. Instead of dressing every cable up with staples or drilling multiple holes through joists and studs, the bracket lets you route several cables through a single mounting point.
With a quick two-screw installation, it helps reduce damage to the framing while protecting cables from staple punctures, compression, and rough wood edges. The result is faster installs, neater layouts, and fewer headaches during maintenance.

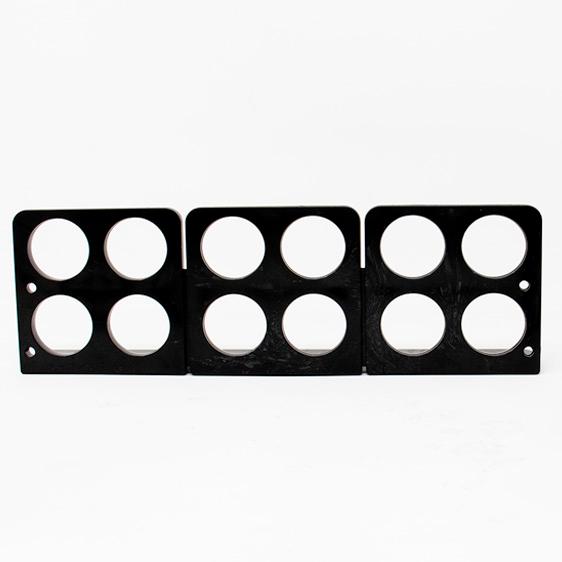

Designed for maximum flexibility, the Crackit Bracket can be used as a full 12-hole bracket, or snapped apart into three 4-hole sections. This allows electricians to match the bracket size to number of cables to be ran, and avoid wasted slots.
The open-access design also makes it easy to add or remove wires later, making it ideal for upgrades, service work, or expanding circuits.
Choose your Quantity
- Made in USA
- ETL Listed— complies with UL 2239 and CSA C22.2 No. 18.4 standards
- Each piece contains 12 holes or (3) 4-hole pieces when split apart.
- 1″ Hole Diameter, holds up to 3 NM cables per hole
- MODULAR – Break the Crackit Bracket into 3 different pieces depending on the run, so you always have just the right amount of slots for your cables
- QUICK INSTALLS – No more hammering staples for home runs, Crackit Bracket holds up to 36 cables with 2 screws
- EFFICIENT – No empty slots left behind, snap the Bracket off into 3 sections according to the number of wires you need to run
- KEEP RUNS NEAT – Perfect for attics and basements where you want to keep wire runs neat and organized.
- EASY FUTURE FOLLOW-UPS – Leaves room for future expansion by using the available slots or adding another bracket next to it
- Maximum distance between each Crackit Bracket under floor joists is 16″ (when using under floor joists, the maximum distance, on one side from any wall, joist, pipe or ductwork is 12″)
- Maximum distance between each Crackit Bracket along floor joists is 30″
- Maximum distance between each Crackit Bracket above ceiling joists is 24″
- Wire fill per hole:
No more than (3) of 14-2, 14-3, 12-2, 12-3 NMSC.
No more than (2) of 10-2, 10-3, 8-2, 6-2 NMSC.
No more than (1) of 8-3, 6-3 NMSC and any SER up to #2.
Unlimited low voltage, data, phone, cable (Up to 0.3”, max. load rating 30lbs) - Follows standard wire fill calculation guidelines.
